Why Does Cable Extrusion Thickness Become Uneven?

Uneven insulation or jacketing is not just a quality control issue. It acts as a direct driver of material waste, compliance failures, and production downtime. These variations disrupt steady manufacturing lines and drain valuable resources.

While minor variations remain inevitable, systemic fluctuations in cable extrusion thickness indicate severe underlying inconsistencies. They typically point to mechanical wear, thermal imbalances, or material flow disruptions. Ignoring these early warning signs leads to erratic product quality and higher scrap rates across your facility.

This article examines the root causes of thickness deviation across standard and specialized polymers. We evaluate the physical limits of legacy equipment to help you identify critical performance gaps. You will gain a practical framework for determining when to optimize existing lines versus investing in upgraded machinery.

Key Takeaways

• Root Causes: Temperature fluctuations, inconsistent conductor tension, and worn tooling are the primary drivers of uneven wall thickness.

• Material Variables: High-viscosity materials like LSZH require stricter thermal controls compared to standard PVC to maintain consistent flow rates.

• Evaluation Metric: The decision to retrofit or replace depends on whether the thickness variation stems from isolated component failure (e.g., a faulty preheater) or systemic machine degradation.

• Solution Pathway: Modernizing production with targeted upgrades or custom cable extrusion machinery drastically reduces eccentricity and material scrap rates.

The Business Impact of Uneven Cable Extrusion Thickness

Inconsistent insulation thickness heavily affects production efficiency and product viability. When operators cannot rely on machine stability, they often implement costly workarounds. These temporary fixes mask the root problem while generating massive operational expenses.

1. Material Give-Away: Operators frequently run machines at the upper tolerance limit. They do this to avoid thin spots falling below minimum specifications. While this ensures the cable passes basic checks, it leads to significant annual resin waste. Extruding an extra 0.1mm of plastic across hundreds of kilometers of wire consumes immense volumes of excess raw material.

2. Compliance & Safety Risks: Thin insulation walls pose severe dangers. They risk catastrophic dielectric failure during high-voltage testing. Products exhibiting localized thinning rarely pass stringent UL or IEC standard evaluations. Shipping non-compliant cables exposes manufacturers to costly product recalls and severe brand damage.

3. Scrap and Downtime: Unstable thickness causes frequent line stoppages. Technicians must halt the line for manual die centering or off-spec material rejection. Each hour spent re-calibrating the crosshead represents lost output. These continuous interruptions drain overall facility productivity and elevate scrap volumes.

Common Mistake: Relying on manual operator adjustments to fix fluctuating thickness. Human intervention cannot solve underlying mechanical wear or thermal instability.

Core Mechanical and Thermal Causes of Thickness Deviation

Maintaining stable cable extrusion thickness requires perfect harmony among mechanical parts and thermal settings. Minor deviations in either category cascade into visible defects at the die exit.

Inconsistent Conductor Preheating

Preheating the bare conductor forms the foundation of stable extrusion. Cold conductors shrink the inner layer of the plastic melt prematurely upon contact. This rapid cooling causes internal drag, pulling the polymer unevenly and creating irregular wall thickness. Furthermore, fluctuating preheat temperatures alter polymer adhesion and flow dynamics inside the crosshead. If the wire temperature swings from hot to cold, the plastic will expand and contract inconsistently.

Extruder Screw and Barrel Wear

The extruder screw acts as the heart of the pumping mechanism. Over time, processing abrasive compounds wears down the screw flights and the inner barrel wall. This worn clearance drastically reduces pumping efficiency. Instead of a steady forward flow, the melt experiences "surging." Surging creates inconsistent output rates at the crosshead. Consequently, the jacket thickness pulses from thick to thin along the length of the cable.

Tooling Misalignment and Wear

Crosshead tooling dictates the final shape of the melt. Improperly centered dies or worn core tubes create eccentricity. During an eccentricity failure, the overall outer diameter appears correct, but the internal wall thickness is lopsided. One side of the wire receives too much plastic, while the opposite side remains dangerously thin. Operators must regularly inspect die geometries to prevent this asymmetric flow.

Line Speed vs. Extruder RPM Mismatch

Extrusion relies on synchronized speed. A severe lack of synchronized closed-loop control between the capstan (pulling speed) and the extruder drive (RPM) creates chaotic results. If the capstan pulls slightly faster than the extruder delivers plastic, the wall stretches thin. If the capstan lags, the plastic bunches up, creating thick spots. Modern lines utilize tension sensors and laser gauges to lock these two speeds together seamlessly.

Material-Specific Challenges: Standard Plastics vs. LSZH

Different polymers exhibit unique flow behaviors under heat and pressure. Equipment handling one material perfectly might fail completely when processing another. Understanding these material variables helps technicians adjust thermal profiles correctly.

Standard PVC and PE Processing

Standard Polyvinyl Chloride (PVC) and Polyethylene (PE) remain generally forgiving. They melt smoothly and traverse the crosshead evenly under normal conditions. However, they are highly sensitive to ambient temperature changes and moisture. If you fail to dry PE properly before extrusion, trapped moisture turns to steam. This steam creates micro-voids in the melt, leading to micro-variations in cable extrusion thickness. Operators must maintain strict hopper drying protocols to ensure consistent flow.

LSZH (Low Smoke Zero Halogen) Complexities

LSZH compounds present massive processing challenges. They incorporate high volumes of mineral fillers, making them highly viscous and incredibly shear-sensitive. They require an extremely precise temperature profile. If an operator overheats LSZH, the material experiences premature cross-linking. This scorching creates hard particles disrupting flow. Conversely, underheating LSZH causes unmelted lumps, resulting in severe thickness variations and jacket tearing.

Evaluation Note: Legacy extruders often lack the specialized screw geometry and thermal precision required for stable LSZH processing. Older designs generate too much friction, destroying the shear-sensitive compound before it reaches the die.

Best Practice: Always utilize low-compression barrier screws when processing LSZH. These designs melt the polymer gently through conduction rather than aggressive mechanical shear.

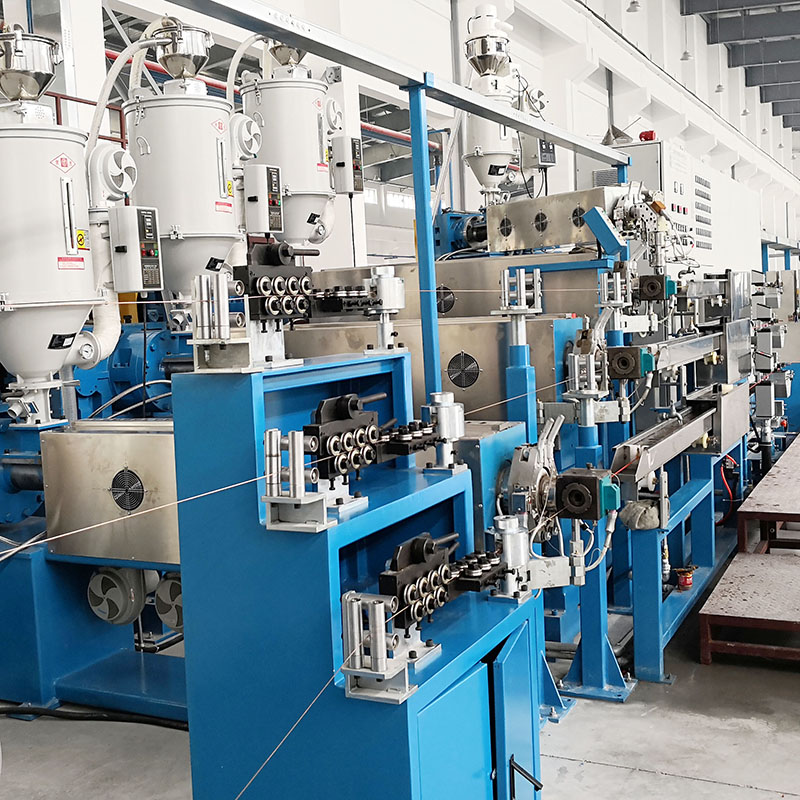

Evaluating Your Current Cable Extruder Machine: Retrofit or Replace?

Deciding how to upgrade an aging line involves auditing mechanical integrity and control capabilities. Evaluating your current Cable Extruder Machine requires a practical look at where your specific thickness errors originate.

When to Retrofit Existing Equipment

Retrofitting makes sense when the base extruder remains mechanically sound. If your barrel shows minimal wear and your motor drives function reliably, targeted upgrades offer high ROI. Adding closed-loop diameter and eccentricity gauges provides immediate feedback to the operator. Upgrading the crosshead to a modern fine-tuning design can resolve minor manual alignment deviations. Retrofitting works best for resolving isolated component failures without ripping out the entire production line.

When to Replace the Entire Line

Replacement becomes mandatory when systemic machine degradation occurs. If barrel wear proves extensive, retrofitting cannot fix the resulting surge issues. Older machines often cannot maintain the necessary L/D (Length/Diameter) ratios required for melting modern, highly filled compounds. Additionally, if the control architecture relies on obsolete relays, preventing the integration of automated speed-to-output synchronization, the machine limits your production ceiling. At this stage, attempting piecemeal upgrades wastes capital.

Risk Assessment for Modernization

Manufacturers must factor in the integration risks of piecemeal retrofitting. Bolting a new digital gauge onto an analog motor drive often causes communication lag. This lag creates hidden downtime costs as engineers struggle to synchronize disparate systems. You must compare these frustrating integration risks against the guaranteed performance of a pre-tested, fully integrated new line. Comprehensive lines eliminate compatibility bottlenecks entirely.

Key Specifications for Upgrading to Custom Cable Extrusion Machinery

When audits reveal upgrading is necessary, specifying the correct components guarantees long-term stability. Modernizing your facility requires looking past generic equipment and focusing on targeted engineering features.

Integrated Preheating and Extrusion Coordination

Standalone preheaters often fail to communicate with the main extruder line. Evaluating systems like an LSZH High-Prec Cable Extruder w/Preheater ensures precise thermal matching. This integration ensures the conductor temperature perfectly matches the highly sensitive LSZH melt. By synchronizing these temperatures automatically, operators eliminate inner-wall drag and secure a perfectly concentric inner insulation layer.

Advanced Screw Design Geometries

You cannot process diverse materials using a single screw geometry. Specifying barrier screws tailored to your exact polymer portfolio prevents both scorching and unmelted lumps. Custom geometries optimize shear rates for LSZH without sacrificing maximum line speed when running standard PVC. These advanced screws isolate the solid bed from the melt pool, guaranteeing a homogenous output free of surges.

Automated Centering and Closed-Loop Feedback

Manual centering belongs in the past. Look for machinery equipped with real-time continuous thickness measurement lasers. These systems scan the cable 360 degrees as it exits the water trough. They automatically adjust line speed or extruder RPM based on immediate dimensional feedback. Some advanced crossheads even feature motorized centering bolts, completely removing human error from the alignment process.

Scalability for Future Materials

Regulatory landscapes change rapidly, demanding new fire-retardant blends. Ensuring the custom cable extrusion machinery you purchase can adapt to future regulatory shifts protects your investment. Scalable platforms allow for easy screw swaps, quick-change tooling, and modular control software upgrades. This flexibility means you accommodate new material blends without requiring immediate, expensive re-tooling across the facility.

Conclusion

Uneven cable extrusion thickness is a solvable physics and engineering problem, not an unavoidable cost of doing business. Relying on outdated machinery or manual operator compensation only amplifies resin waste and increases the risk of compliance failures. By understanding the mechanical and thermal variables at play, you gain control over your production quality.

Take proactive steps to secure your manufacturing efficiency. First, audit your current scrap rates and eccentricity data closely. Next, check your conductor preheating stability and inspect screw wear. If variations persist despite tooling changes and parameter adjustments, consult with an equipment manufacturer. They can help you evaluate custom extrusion configurations or targeted line upgrades to eliminate these costly deviations permanently.

FAQ

Q: What is the difference between diameter variation and uneven thickness (eccentricity)?

A: Diameter variation means the entire cable size is changing, usually due to surging or speed mismatches. Eccentricity means the overall diameter is stable, but the conductor sits off-center. This misalignment causes one side of the insulation to be dangerously thick while the opposite side remains too thin.

Q: How does a preheater prevent uneven extrusion?

A: A preheater brings the bare wire up to a temperature matching the extruded plastic. This prevents sudden thermal shock. Without preheating, the hot plastic hits cold wire, causing the polymer to cool quickly, shrink, and flow unevenly over the conductor surface.

Q: Can a standard Cable Extruder Machine process LSZH efficiently?

A: Usually no. Standard machines often create too much friction and shear heat, which quickly degrades sensitive LSZH compounds. Processing LSZH successfully requires specialized screw designs, low-compression profiles, and highly accurate thermal controls to prevent material scorching.
