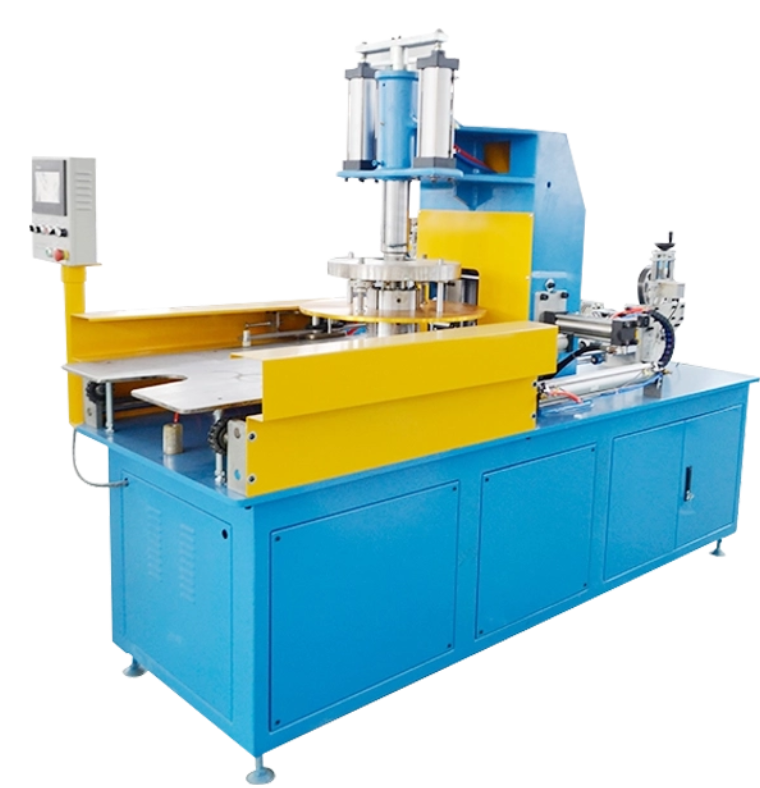

This wire cable coiling machine series supports multi-coil production with helical, flat, and conical coil configurations. Tooling and setting adjustments enable operators to switch between coil designs. The equipment carries CE certification and includes an adjustable tension control system with sensor monitoring. Wire diameter capacity ranges from 1mm to 25mm across the model lineup, with maximum speeds reaching 400m/min on select models. The modular design supports customization and integration into existing production lines, serving medical device, aerospace, and jewelry manufacturing applications.
The coiling machine produces helical coils, flat coils, and conical coils. Operators can switch between coil designs through tooling adjustments and setting modifications, reducing changeover time between production runs.
The adjustable tension control system maintains uniform tension throughout the coiling process. Sensors monitor wire tension during operation and make adjustments based on preset parameters, supporting consistent coil dimensions across production batches.
The modular structure allows for customization and expansion. Available modules include wire straightening units and cutting units, which can be added to match specific production requirements. The design also supports integration with existing production line setups.
All parameters below correspond to standard factory configurations.
Model | Height H (mm) | Outside Diameter O.D (mm) | Inside Diameter I.D (mm) | Wire/Cable Diameter (mm) | Speed (1000M / Coil) (Max.) | Average Output (100M / Coil) |
|---|---|---|---|---|---|---|
C1246 | 50-120 | Ø200-Ø460 | Ø120-Ø200 | Ø1 - Ø8 | 400M/min | 2Coils/Min. |
C1860 | 60-180 | Ø400-Ø600 | Ø160-Ø250 | Ø5 - Ø18 | 150M/min | 1Coil/Min. |
C2060 | 80-200 | Ø400-Ø600 | Ø160-Ø250 | Ø5 - Ø20 | 150M/min | 1Coil/Min. |
C2480 | 80-240 | Ø450-Ø800 | Ø200-Ø300 | Ø15 - Ø25 | 100M/min | 1Coil/Min. |
The equipment produces coils for medical devices including catheters and stents. The precision control system supports the dimensional consistency requirements associated with medical component production.
The coiling machine manufactures coils for aerospace applications where dimensional accuracy directly affects component performance.
The machine creates wire coils for jewelry production, supporting intricate design configurations with adjustable tooling setups.
The equipment requires a level floor surface with specified load-bearing capacity. Electrical connections must match the voltage and frequency requirements listed in the product documentation. Technical support is available during the installation and commissioning phase.
Daily maintenance includes inspection of tension sensors and tooling condition. Periodic lubrication of moving parts and calibration of tension control systems are recommended per the operation manual. Replacement parts are available through the supplier network.
Yes. The multi-coil capability and adjustable settings support the production of custom-shaped coils based on specific design requirements. Tooling modifications may be required for certain custom configurations.
The tension control system uses sensors to monitor wire tension during the coiling process. It adjusts tension automatically based on preset parameters to maintain consistent results across production runs.
Yes. The modular design supports integration with existing production line setups. Technical teams can provide support and guidance during the installation and integration process.
Delivery lead times vary by model and configuration. Standard models typically ship within 30-45 working days from order confirmation. Custom configurations may require additional production time.
