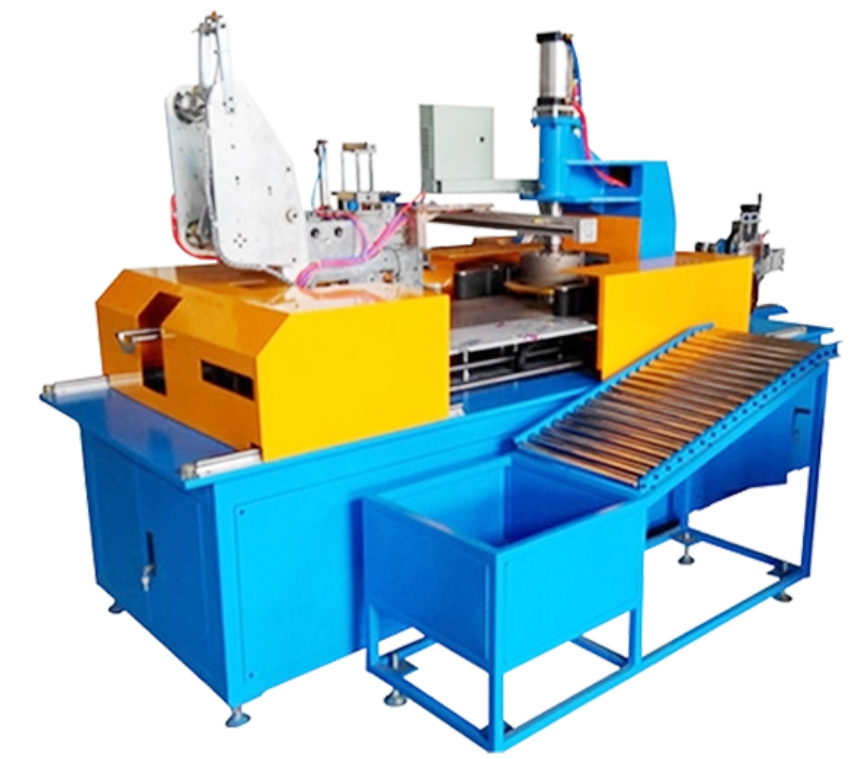

Designed for commercial PVC cable production lines, this magnetic powder cable handler uses a magnetic powder-based tension control system paired with inline sensors to monitor tension, line speed, and equipment temperature in real time. Manufactured with modular components in a CE-compliant facility, the equipment supports fast configuration adjustments and energy-efficient operation, helping cable manufacturers reduce ongoing operational expenses.
At the core of the equipment is a magnetic powder tension system paired with three types of inline sensors, which track cable tension, line speed, and equipment temperature throughout the production cycle. Tension sensor data is transmitted to a central control panel, where operators can view real-time values and adjust parameters to align with specific PVC cable processing requirements. Continuous monitoring of speed and temperature allows operators to detect unusual operating conditions early, supporting planned maintenance scheduling and reducing unplanned production downtime. The control system also supports remote access via mobile devices, allowing production staff to check operating status from different locations within the facility.
The cable handler adopts a modular component structure, allowing assembly, disassembly, and reconfiguration to match specific production requirements. This design supports deployment in both small-batch processing setups and large-scale industrial production lines. Cable winding assemblies can be adjusted by adding or removing individual modules to accommodate different coil size requirements. The modular structure also simplifies installation and maintenance procedures: individual components can be replaced without full disassembly of the unit, reducing equipment downtime and associated maintenance costs.
The cable handler’s drive system is engineered to reduce energy use while maintaining consistent pulling force for PVC cable processing. The system includes variable-speed drives that adjust operating speed based on current load, drawing only the power required for each production step. The drive system also features a regenerative braking function that converts kinetic energy generated during deceleration into electrical energy. This recovered energy can be reused within the production line or fed back into the facility’s power system, reducing overall energy consumption and associated operating costs.
Model | Height H (mm) | Outside Diameter O.D (mm) | Inside Diameter ID (mm) | Wire/Cable Diameter (mm) | Average output (100M / Coil) |
|---|---|---|---|---|---|
CP1040 | 50-100 | Ø180-Ø400 | Ø120-Ø200 | Ø3 - Ø8 | 2Coils/Min. |
CP1860 | 70-150 | Ø280-Ø600 | Ø180-Ø250 | Ø5 - Ø15 | 1Coils/Min. |
This magnetic powder cable handler is primarily deployed in PVC cable extrusion and coiling processes. It integrates with existing commercial PVC cable production lines, delivering stable tension control to reduce surface defects and dimensional variation in finished cables. The equipment supports processing of PVC insulation cables within the diameter ranges listed in the specification table, covering common small and medium gauge cable products for industrial applications.
For commercial procurement clients, we provide a range of support services covering the full equipment lifecycle. Services include on-site installation to ensure proper and safe setup, operator training covering daily operation and routine maintenance procedures, and scheduled maintenance visits to preserve equipment function. Technical support staff are available 24/7 to respond to operational questions and troubleshooting requests.
The CP1040 model supports cable diameters from Ø3 mm to Ø8 mm, and the CP1860 model supports cable diameters from Ø5 mm to Ø15 mm. Both models are engineered for use with PVC insulated cable products in coiling and processing applications.
With the modular design, standard size changeovers can be completed by in-house maintenance staff using basic tools. Adjustment time varies based on the scope of the change, with most diameter and coil size adjustments completed within a standard production shift.
Each purchase includes on-site installation, basic operator training, and a standard maintenance service package. Extended service plans are available upon request for enterprise customers with multiple production facilities.
