Views: 0 Author: Site Editor Publish Time: 2025-11-28 Origin: Site
The cable extrusion process is a critical component in manufacturing electrical, telecommunications, and specialty cables. The use of a cable extruder machine is pivotal in ensuring high-quality, consistent cable production. In this article, we will explore the detailed cable extrusion process, the role of the cable extruder machine, its components, how it works, and why investing in high-quality machines is key to enhancing productivity and cable quality.
Cable extrusion is the process used to create the insulation and protective layers that surround the conductor in electrical and communication cables. Through the use of a cable extruder machine, raw materials such as polymers, plastics, rubbers, and metals are melted and formed into a protective covering. The extruder machine pushes these materials through a die head, shaping the final product according to the desired specifications.
The primary purpose of cable extrusion is to ensure that the conductor remains safe and operational by creating a protective coating. The process can also be used to produce multi-layered cables, adding insulation, shields, and jacketing to the wire.
Cable extrusion ensures that the end product meets industry standards for electrical insulation, durability, and safety. As industries demand higher-quality cables for more complex applications, the quality of the extrusion process directly impacts cable performance.

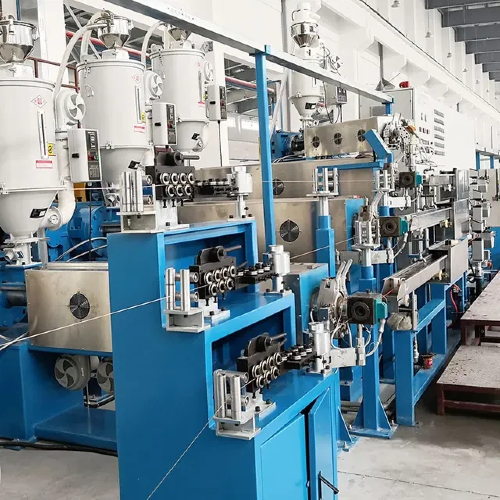

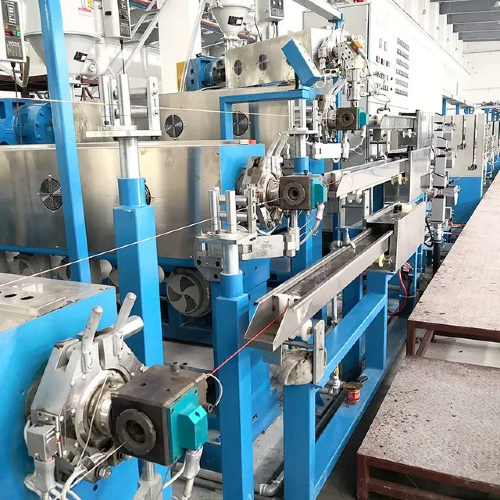

A cable extruder machine consists of several key components, each with a specific role in ensuring the proper functioning of the extrusion process. These components work together to create high-quality, durable cables.
The barrel is the main component of the extruder where raw materials are fed into the machine. Inside the barrel, a rotating screw pushes the material forward. As the material moves, it is heated by external heaters, and the screw helps mix and melt the material into a uniform consistency. The screw's design—specifically its grooves and pitch—affects the material’s ability to flow and mix evenly.
The die head is the part of the cable extruder machine that shapes the molten material as it flows out of the machine. The design of the die head determines the final form of the cable’s insulation or coating. In some cases, the die head can also be used for multi-layer applications where different materials are extruded simultaneously.
Once the material passes through the die, it is still in a molten state. The cooling system is used to solidify the cable and ensure it retains its desired shape and thickness. Common cooling methods include water tanks, air cooling, or even forced cooling systems that quickly lower the temperature of the extruded material.
After the extrusion and cooling stages, the cable is collected and wound into coils by the take-up unit. The take-up unit ensures that the cable is evenly wound and ready for further processing or packaging.
The cable extrusion process involves several distinct steps, each of which contributes to creating a high-quality end product. Let’s break down these steps in detail:
The process begins with the selection and preparation of raw materials. These materials typically include thermoplastics such as PVC (Polyvinyl Chloride), PE (Polyethylene), and rubber. Additives and fillers are often mixed with the base material to achieve specific properties such as flexibility, heat resistance, or flame retardancy.
Material | Properties | Common Applications |
PVC | Cost-effective, versatile, flame-resistant | Power cables, communication cables |
PE | Excellent electrical properties, low-cost | Low-voltage power cables, data cables |
Rubber | High flexibility, weather-resistant | Specialized cables, industrial cables |
Once the raw material is loaded into the cable extruder machine, it is fed into the barrel. Here, the material is heated and mixed by the rotating screw. The screw helps to evenly distribute the heat, ensuring that the material becomes uniformly molten. This is a critical step, as uneven melting can lead to defects in the final cable.
As the material melts, it is pushed forward by the screw towards the die head. The molten material is forced through the die, which shapes it into the desired form. In cable extrusion, this die is responsible for forming the insulation layer around the wire or conductor. The die's design will determine the thickness and texture of the final insulation.
The cable extruder machine can produce cables with varying insulation thickness, multi-layer coatings, or specialized features. The die’s shape can be customized to meet specific requirements, such as adding coatings for water resistance, fire resistance, or UV protection.
After the material is extruded through the die, it enters the cooling system. This cooling stage solidifies the molten material, locking it into its final form. Rapid cooling is necessary to prevent the material from deforming or becoming misshapen.
Cooling can be achieved through water tanks, air, or even a combination of both. Water cooling is especially common for thick insulation layers, while air cooling is often used for smaller diameters or multi-layer cables.
Once the cable has been cooled and solidified, it is collected by the take-up unit. Depending on the application, additional post-processing steps may be necessary, such as marking, packaging, or testing the cable for electrical performance.
Several factors can influence the quality of the cable extrusion process. Understanding these factors can help manufacturers optimize their production for the best results.
The material used in cable extrusion plays a significant role in determining the final product’s characteristics. For instance, PVC provides good flame resistance but is less flexible than rubber, which is preferred for cables that need to endure harsh conditions.
The settings of the cable extruder machine—such as the barrel temperature, screw speed, and pressure—directly affect the material's flow and consistency. Adjusting these settings based on the material and desired cable properties ensures better extrusion results.
The quality of the cable extruder machine is essential for achieving consistent results. High-quality machines provide better control over the extrusion process, leading to fewer defects, higher production efficiency, and a more reliable end product.
The speed at which the material is extruded also affects the final quality. Faster extrusion speeds may result in uneven thickness or defects, while slower speeds provide more precise control over the material's consistency.
Investing in a high-quality cable extruder machine offers numerous benefits that can significantly impact your production process and final product quality.
A high-quality cable extruder machine increases production efficiency by providing better temperature control, faster extrusion speeds, and automated processes. This leads to reduced downtime, higher throughput, and ultimately, lower manufacturing costs.
With better precision and control, high-quality machines reduce material waste by minimizing defects and rejections. This not only lowers costs but also contributes to more sustainable manufacturing practices.
Precision is a hallmark of high-quality cable extruder machines. These machines maintain a consistent extrusion process, ensuring that every cable produced meets the same high standards for insulation thickness, shape, and performance.
Modern cable extruder machines are designed with energy efficiency in mind. With features like advanced heating systems, optimized screw designs, and variable-speed drives, these machines consume less energy while still delivering excellent performance.
High-quality machines often come with customizable settings, allowing manufacturers to adjust the extrusion process based on the specific requirements of the cable being produced. This flexibility is especially important for manufacturers who produce a wide variety of cables for different applications.
The future of cable extrusion is centered around ongoing advancements in automation, energy efficiency, and material science. As the demand for specialized cables grows, the ability of cable extruder machines to adapt to these needs will be essential in maintaining a competitive edge in the market.
At the forefront of this evolution, Jiangsu Yassjet Precise Machinery Co., Ltd. continues to innovate with state-of-the-art cable extruder machines that provide the precision, efficiency, and reliability manufacturers need. By investing in modern extruders, manufacturers can enhance their productivity, reduce costs, and meet the high demands of the global cable market.
1. What is the role of a cable extruder machine in cable production?
A cable extruder machine is used to melt and form materials around a conductor, creating insulation or protective coatings that are essential for electrical and communication cables.
2. What materials can be used in cable extrusion?
Common materials used in cable extrusion include PVC, PE, rubber, and various thermoplastics. Each material is chosen based on the required properties of the final cable.
3. How do extrusion settings affect the cable production process?
Extruder settings such as barrel temperature, screw speed, and pressure control the flow and consistency of the material, directly influencing the final quality of the cable.
4. What is the importance of the cooling system in cable extrusion?
The cooling system solidifies the molten material after extrusion, ensuring the cable retains its shape and thickness. Proper cooling is crucial for preventing deformation or inconsistencies.
5. Why should I invest in a high-quality cable extruder machine?
Investing in a high-quality machine ensures better production efficiency, reduced material waste, consistent cable quality, and energy savings, leading to long-term profitability.
