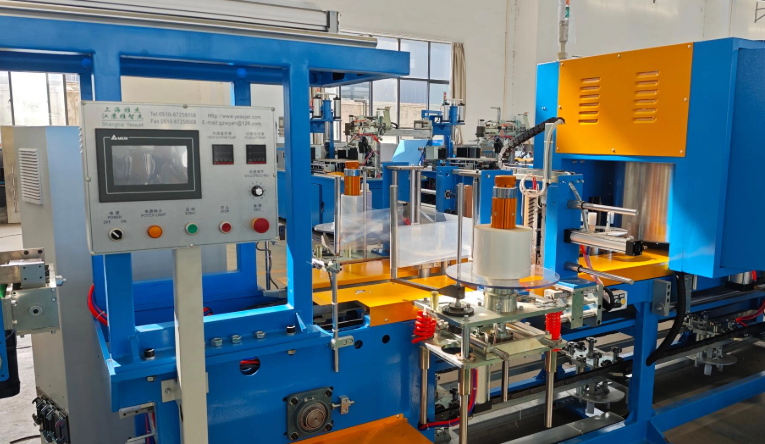

This automatic 4-tie coiling and strapping machine is built for cable manufacturing facilities that pursue full-line production automation. The machine forms neat cable coils and secures them with four binding points to maintain coil shape during storage and transportation. It is equipped with a servo cable arrangement system and manufactured in a CE-certified factory, and can connect with heat shrink packaging lines to improve overall production efficiency.
The equipment integrates coiling and strapping processes into a single unit, which helps save installation space and reduce labor input in the cable packaging section. It supports continuous non-stop production to maintain stable output for commercial production lines.
The machine completes cable coiling and strapping in one continuous process without manual transfer between stations. It adopts a 4-point binding structure: the binding unit secures the coil at two points first, then the coil rotates 90 degrees for another two binding points. Four binding points distributed on two vertical planes keep the coil shape stable during handling and transportation.
The machine uses a servo motor-driven cable arrangement system to achieve neat winding and uniform cable distribution across the coil. The system controls the arrangement path with high precision, which ensures consistent coil appearance and dimensions, and reduces material waste caused by irregular winding.
The system is equipped with an automatic error detection function. When equipment failure occurs during operation, the system identifies the abnormal status and sends an alert to the operator. This function helps reduce downtime caused by unaddressed faults and simplifies daily operation and maintenance work.
The machine can connect with sleeve heat shrink packing machines to form a continuous packaging line. Coils processed by this machine have a central hole, which supports handling by both manual operation and robotic arms. This compatibility allows the equipment to integrate into existing production lines with minimal modification.
This equipment is suitable for high-speed automatic coiling and packaging of various wires and cables. Compatible cable types include BV, BVR, RVV, UL electronic wires, flower wires and other common cable products. It can adapt to different output requirements of cable manufacturing plants, from small-batch customized orders to large-scale mass production.
The machine is designed to match the packaging needs of commercial cable production, and helps standardize the packaging process to maintain consistent product appearance across batches. It can be deployed as a standalone unit or as part of a full packaging production line.
Model | Height(mm) | OD(mm) | ID(mm) | Wire Dia(mm) | Wrapping Materials | Average Coil output speed (100m/Coil) |
|---|---|---|---|---|---|---|
Four Tie Straps | ||||||
CZ1026 | 50-100 | 180-260 | 140 | 3-6 | PP Belt | 2-2.5coil/min |
The machine supports high-speed coiling and packaging of most common wire and cable types, including BV, BVR, RVV, UL electronic wires and flower wires, as long as the wire diameter falls within the equipment parameter range.
Yes, the machine can be easily connected with sleeve heat shrink packing machines to form a continuous packaging production line. It also supports robotic handling through the central hole of finished coils.
The standard configuration of the machine uses PP belt as the strapping material. Optional configurations for other wrapping materials can be discussed based on specific production requirements.
Teams from cable manufacturing facilities can contact us to get detailed layout plans and compatibility evaluations based on their existing production lines.
